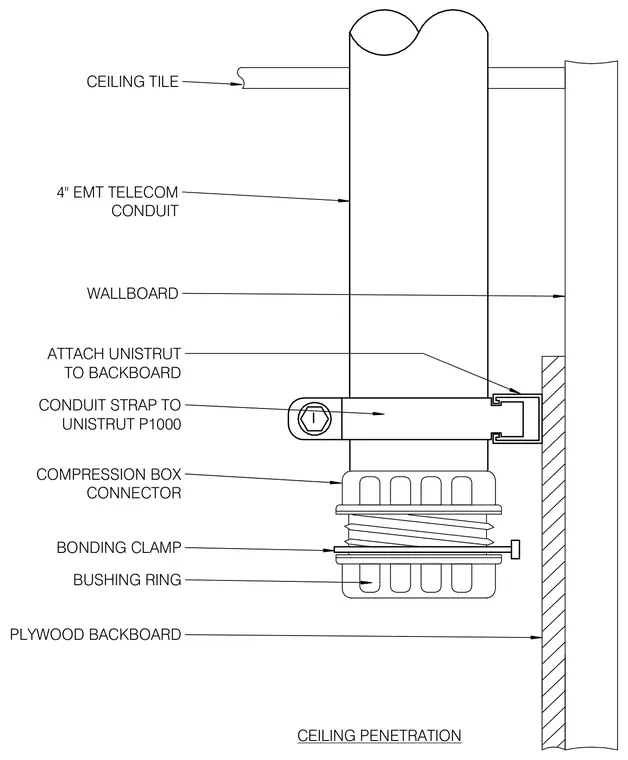

A four-inch electrical metallic tubing telecom conduit passes through a ceiling tile and runs adjacent to a wallboard partition. The conduit is secured to a plywood backboard using an unistrut P1000 channel attached directly to the backboard and clamped with a conduit strap. A compression box connector terminates the conduit end, fitted with a grounding bushing ring and a bonding clamp.
CEILING PENETRATION PLYWOOD BACKBOARD COMPRESSION BOX CONNECTOR BUSHING RING BONDING CLAMP ATTACH UNISTRUT TO BACKBOARD 4" EMT TELECOM CONDUIT CONDUIT STRAP TO UNISTRUT P1000 WALLBOARD CEILING TILE
