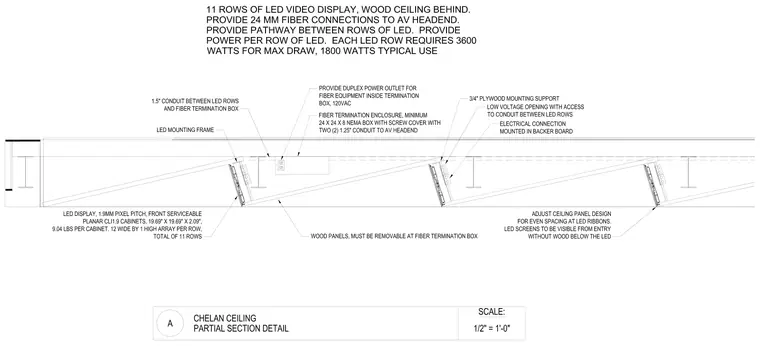

Eleven rows of front-serviceable LED displays with a 1.9 millimeter pixel pitch mount onto an LED mounting frame supported by a wood ceiling. Removable wood panels conceal the ceiling space while providing access to a 24 by 24 by 8 inch NEMA enclosure with screw cover and two 1.25 inch conduits running to the audiovisual headend. A duplex power outlet inside the termination box provides 120VAC power, with 1.5 inch conduits connecting the LED rows to the fiber box. Each LED row requires 3600 watts for maximum draw and 1800 watts for typical use, utilizing 24mm fiber connections. A three-quarter inch plywood mounting support accommodates low-voltage openings with access to conduits, and electrical connections are mounted in the backer board behind the display.
