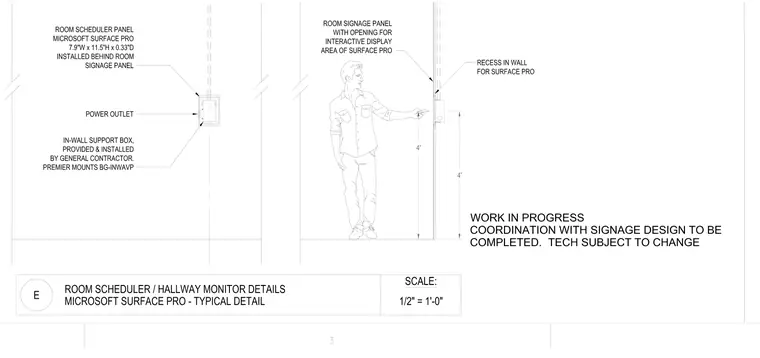

A Microsoft Surface Pro room scheduler panel measuring 7.9 inches wide by 11.5 inches high by 0.33 inches deep is installed behind a room signage panel. The assembly features an in-wall support box, specifically a Premier Mounts BG-INWAVP provided and installed by the general contractor, recessed into the wall. A power outlet is positioned inside the support box. The room signage panel includes an opening for an interactive display area of the Surface Pro, positioned at a mounting height of 4 feet above the finished floor.
