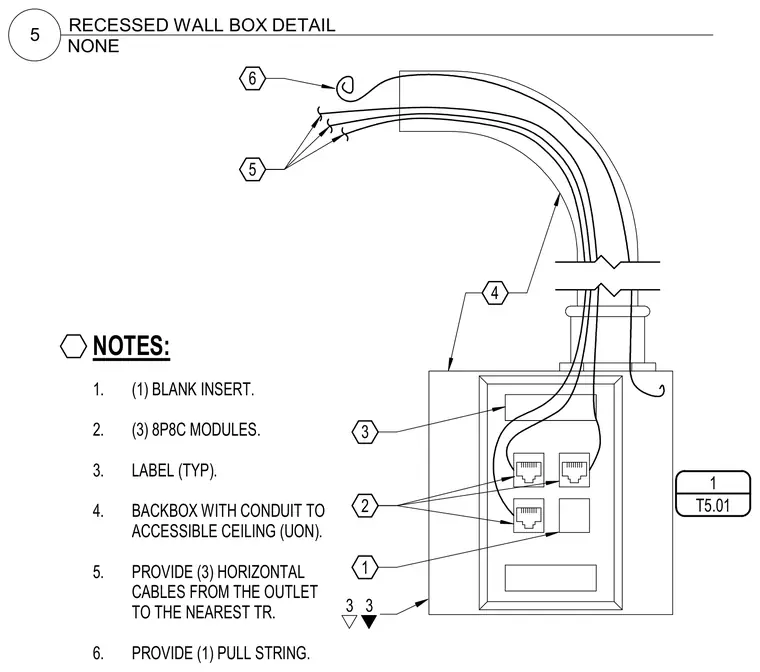

A recessed wall box contains three 8P8C modules and one blank insert, with a typical label applied to the faceplate. A conduit connects the backbox to the accessible ceiling unless noted otherwise. Three horizontal cables run from the outlet to the nearest telecommunications room alongside one pull string.
3 3 1. (1) BLANK INSERT. 2. (3) 8P8C MODULES. 3. LABEL (TYP). 4. BACKBOX WITH CONDUIT TO ACCESSIBLE CEILING (UON). 5. PROVIDE (3) HORIZONTAL CABLES FROM THE OUTLET TO THE NEAREST TR. 6. PROVIDE (1) PULL STRING. NOTES: 4 1 2 3 5 6 1 T5.01 NONE 5 RECESSED WALL BOX DETAIL
