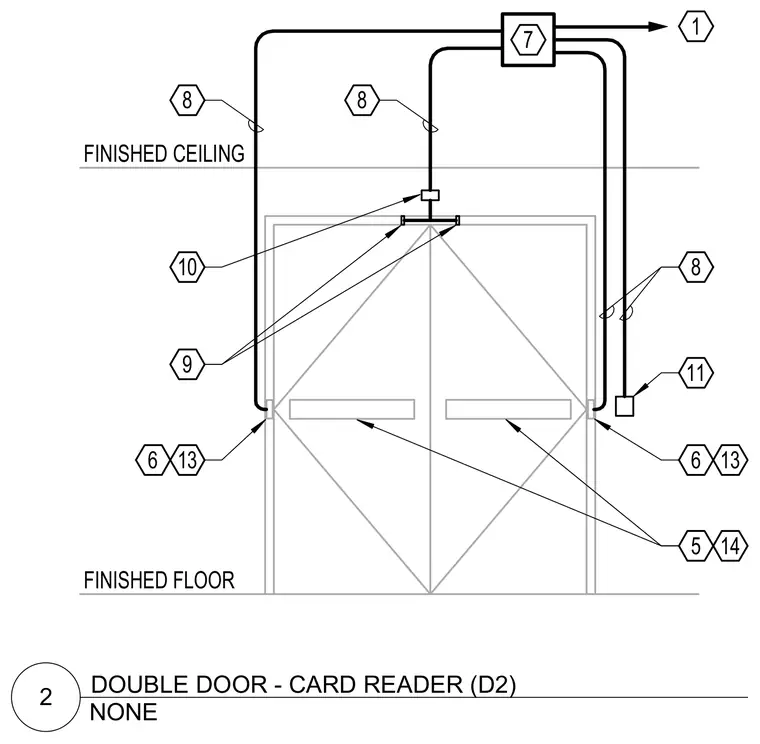

A double door assembly features card reader and access control conduit routing extending from a junction box above the finished ceiling down to the door frame. Low-voltage cabling connects to the card reader unit mounted adjacent to the opening, running through concealed conduits with designated pull points and hardware interfaces.
13 1 6 5 7 8 FINISHED FLOOR FINISHED CEILING 11 13 14 6 10 9 8 8 NONE 2 DOUBLE DOOR - CARD READER (D2)
