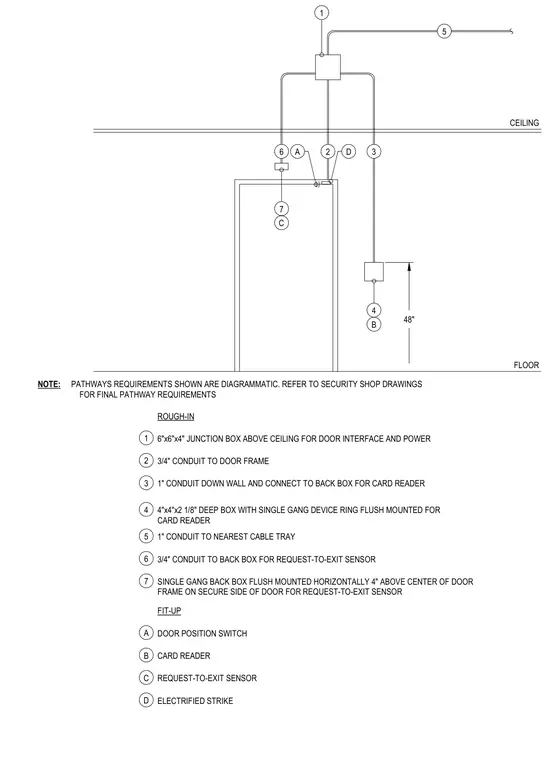

Electrical and telecommunications rough-in requirements for a single door equipped with access control devices. A six-inch by six-inch by four-inch junction box is mounted above the ceiling for door interface and power, connecting via a one-inch conduit to the nearest cable tray. A three-quarter-inch conduit extends to the door frame for the electrified strike and door position switch. A one-inch conduit runs down the wall to a four-inch by four-inch by two-and-one-eighth-inch deep back box with a single-gang device ring flush mounted for the card reader. A separate three-quarter-inch conduit connects to a single-gang back box flush mounted horizontally four inches above the center of the door frame on the secure side for a request-to-exit sensor. Pathway requirements shown are diagrammatic and subject to final coordination with security shop drawings.
48" 3 4 B 1 2 3 4 5 6 7 A B C 5 2 6 7 C A 1 CEILING FLOOR 6"x6"x4" JUNCTION BOX ABOVE CEILING FOR DOOR INTERFACE AND POWER 3/4" CONDUIT TO DOOR FRAME 1" CONDUIT DOWN WALL AND CONNECT TO BACK BOX FOR CARD READER 4"x4"x2 1/8" DEEP BOX WITH SINGLE GANG DEVICE RING FLUSH MOUNTED FOR CARD READER 1" CONDUIT TO NEAREST CABLE TRAY 3/4" CONDUIT TO BACK BOX FOR REQUEST-TO-EXIT SENSOR SINGLE GANG BACK BOX FLUSH MOUNTED HORIZONTALLY 4" ABOVE CENTER OF DOOR FRAME ON SECURE SIDE OF DOOR FOR REQUEST-TO-EXIT SENSOR ROUGH-IN DOOR POSITION SWITCH FIT-UP CARD READER REQUEST-TO-EXIT SENSOR D D ELECTRIFIED STRIKE NOTE: PATHWAYS REQUIREMENTS SHOWN ARE DIAGRAMMATIC. REFER TO SECURITY SHOP DRAWINGS FOR FINAL PATHWAY REQUIREMENTS
