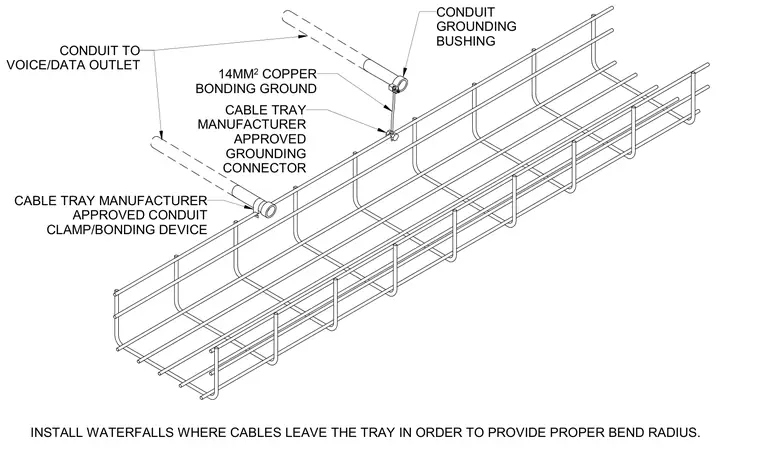

Conduits running to voice and data outlets are terminated with a conduit grounding bushing and secured to the wire basket cable tray using a manufacturer-approved conduit clamp and bonding device. A fourteen square millimeter copper bonding ground connects the bushing to the tray using a manufacturer-approved grounding connector. Waterfalls must be installed where cables leave the tray in order to provide proper bend radius.
CONDUIT TO VOICE/DATA OUTLET CONDUIT GROUNDING BUSHING 14MM 2 COPPER BONDING GROUND CABLE TRAY MANUFACTURER APPROVED GROUNDING CONNECTOR CABLE TRAY MANUFACTURER APPROVED CONDUIT CLAMP/BONDING DEVICE INSTALL WATERFALLS WHERE CABLES LEAVE THE TRAY IN ORDER TO PROVIDE PROPER BEND RADIUS.
