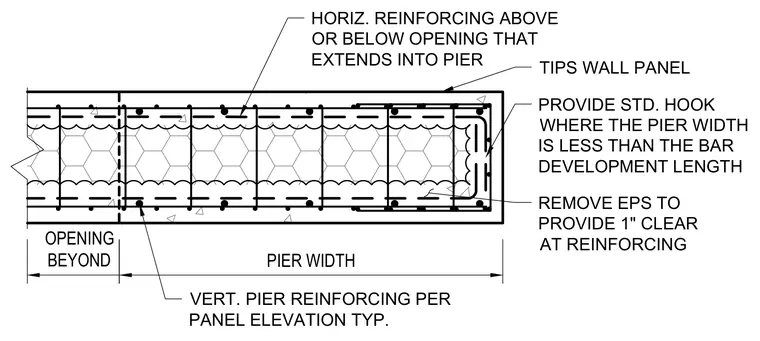

Vertical pier reinforcing is provided per the panel elevation, while horizontal reinforcing extends from above or below the opening into the pier. Standard hooks are required where the pier width is less than the bar development length. Expanded polystyrene insulation is removed to provide a one-inch clearance at the reinforcing near openings.
TIPS WALL PANEL VERT. PIER REINFORCING PER PANEL ELEVATION TYP. PIER WIDTH HORIZ. REINFORCING ABOVE OR BELOW OPENING THAT EXTENDS INTO PIER PROVIDE STD. HOOK WHERE THE PIER WIDTH IS LESS THAN THE BAR DEVELOPMENT LENGTH REMOVE EPS TO PROVIDE 1" CLEAR AT REINFORCING OPENING BEYOND
