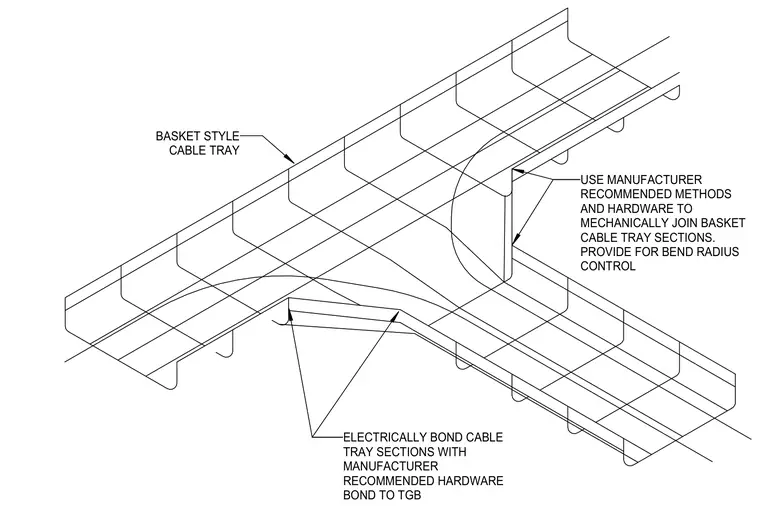

Basket style cable tray sections connect using manufacturer recommended methods and hardware for mechanical joining and bend radius control. Adjacent cable tray sections electrically bond using manufacturer recommended hardware connected to the telecommunications grounding busbar.
ELECTRICALLY BOND CABLE TRAY SECTIONS WITH MANUFACTURER RECOMMENDED HARDWARE BOND TO TGB USE MANUFACTURER RECOMMENDED METHODS AND HARDWARE TO MECHANICALLY JOIN BASKET CABLE TRAY SECTIONS. PROVIDE FOR BEND RADIUS CONTROL BASKET STYLE CABLE TRAY
