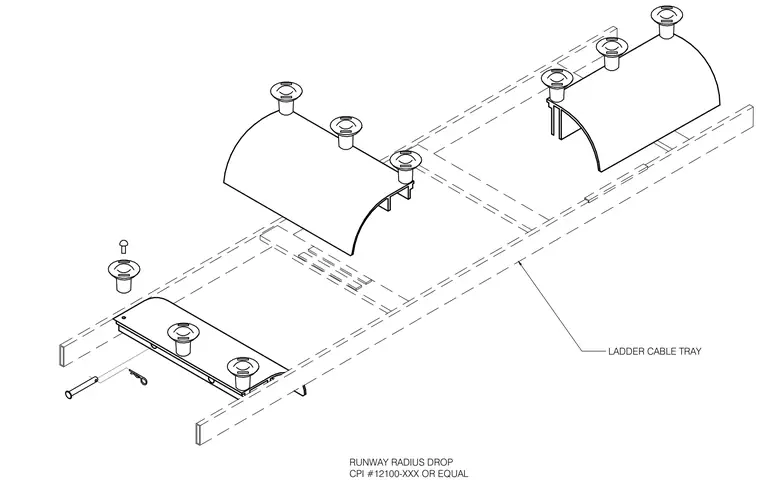

A runway radius drop is installed on a ladder cable tray, matching CPI model number 12100-XXX or equal. The curved drop accessory mounts directly to the cable tray to maintain proper cable bend radius for telecommunications and data cabling.
