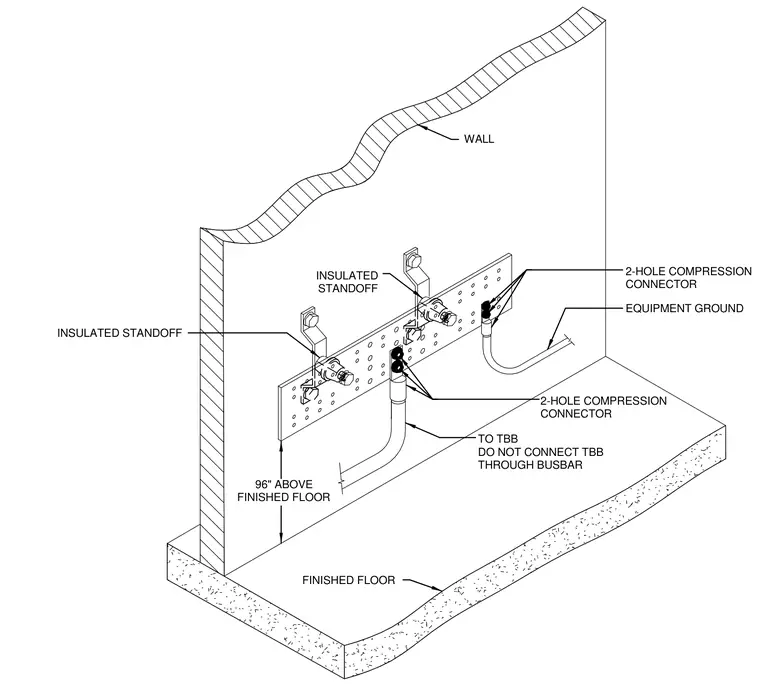

A telecommunications grounding busbar is mounted to the wall on insulated standoffs positioned ninety-six inches above the finished floor. Equipment grounds and telecommunications bonding backbone cables connect to the busbar using two-hole compression connectors. The telecommunications bonding backbone connects directly without passing through the busbar, left unconnected through the bar as noted.
2-HOLE COMPRESSION CONNECTOR FINISHED FLOOR WALL TO TBB DO NOT CONNECT TBB THROUGH BUSBAR 2-HOLE COMPRESSION CONNECTOR EQUIPMENT GROUND INSULATED STANDOFF INSULATED STANDOFF 96" ABOVE FINISHED FLOOR
