A fixed IP dome camera is flush-mounted into an interior ceiling soffit and secured using toggle bolts as required. A camera back box sits above the ceiling plane, connected via an IP jumper cable to an IP data jack located inside a six-inch by six-inch by four-inch junction box. A three-quarter-inch conduit runs from the junction box to the nearest accessible ceiling or cable tray.

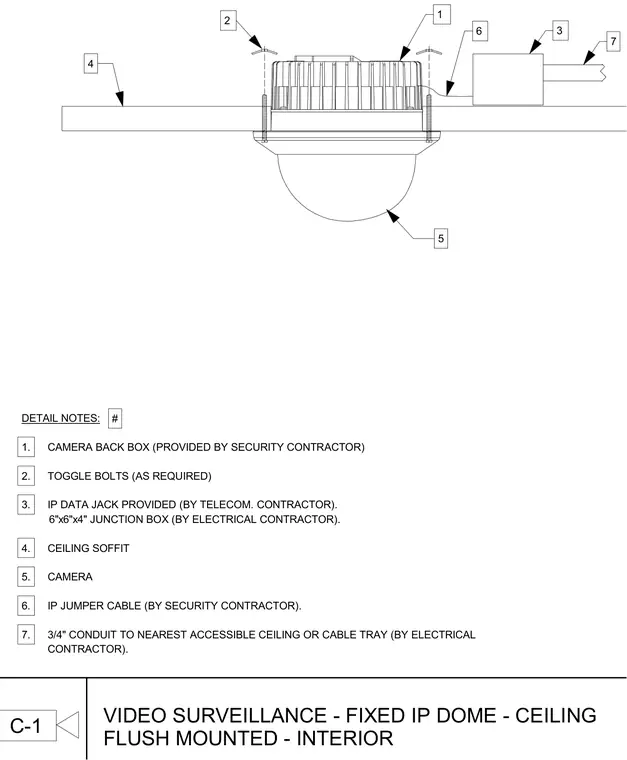

# C-1 DETAIL NOTES: 1. CAMERA BACK BOX (PROVIDED BY SECURITY CONTRACTOR) 2. TOGGLE BOLTS (AS REQUIRED) 3. IP DATA JACK PROVIDED (BY TELECOM. CONTRACTOR). 6"x6"x4" JUNCTION BOX (BY ELECTRICAL CONTRACTOR). 4. CEILING SOFFIT 5. CAMERA 6. IP JUMPER CABLE (BY SECURITY CONTRACTOR). 7. 3/4" CONDUIT TO NEAREST ACCESSIBLE CEILING OR CABLE TRAY (BY ELECTRICAL CONTRACTOR). VIDEO SURVEILLANCE - FIXED IP DOME - CEILING FLUSH MOUNTED - INTERIOR 1 6 3 7 2 4 5
