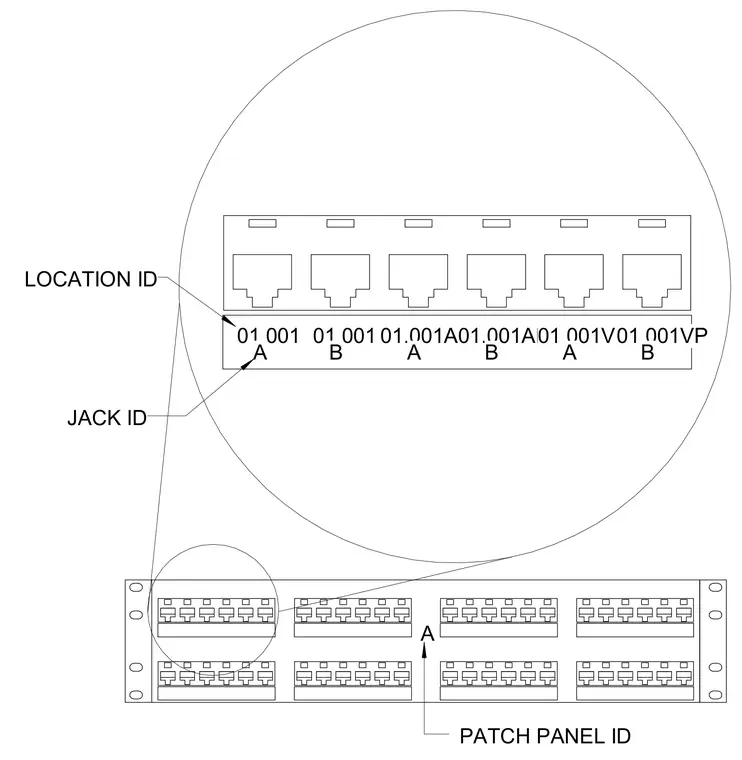

Telecommunication patch panel labeling configuration indicating location identification, jack identification, and patch panel identification fields. The standard naming convention incorporates location IDs combined with jack IDs and audio-visual or voice-data suffixes for network port organization.
A 01.001 A 01.001 B 01.001AP A 01.001AP B 01.001VP A 01.001VP B LOCATION ID JACK ID PATCH PANEL ID
