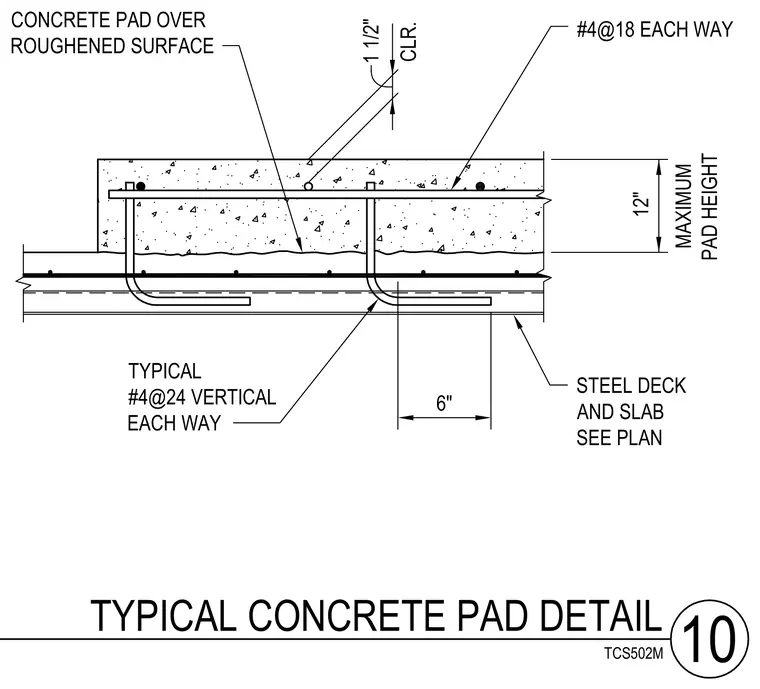

A typical concrete equipment pad is cast over a roughened concrete and steel deck slab with a maximum pad height of twelve inches. The pad is reinforced with number four bars spaced at eighteen inches each way, maintaining a one and one-half inch clearance. Vertical reinforcement consists of number four bars at twenty-four inches each way embedded into the supporting steel deck and slab assembly.
6" TYPICAL CONCRETE PAD DETAIL 10 TCS502M CONCRETE PAD OVER ROUGHENED SURFACE #4@18 EACH WAY MAXIMUM PAD HEIGHT STEEL DECK AND SLAB SEE PLAN TYPICAL #4@24 VERTICAL EACH WAY 1 1/2" CLR. 12"
