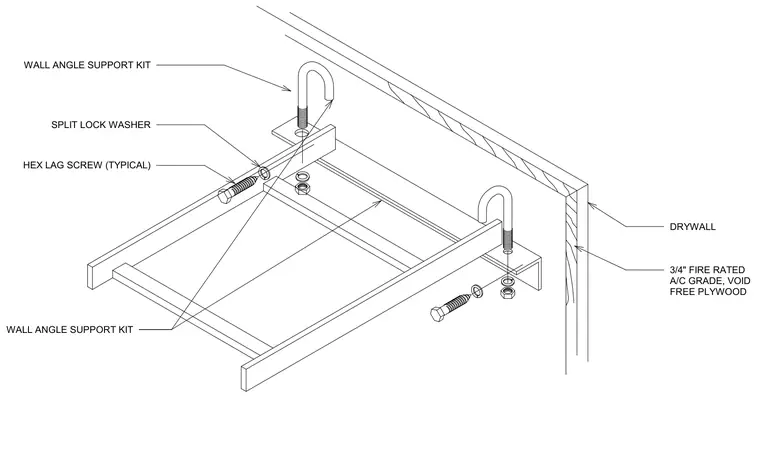

A drywall finish over three-quarter-inch fire-rated A/C grade, void-free plywood backing forms the wall assembly. Hex lag screws with split lock washers secure the support angle directly into the wall framing. The cable tray framing is suspended and attached using the wall angle support kit components.
DRYWALL WALL ANGLE SUPPORT KIT WALL ANGLE SUPPORT KIT SPLIT LOCK WASHER HEX LAG SCREW (TYPICAL) 3/4" FIRE RATED A/C GRADE, VOID FREE PLYWOOD
