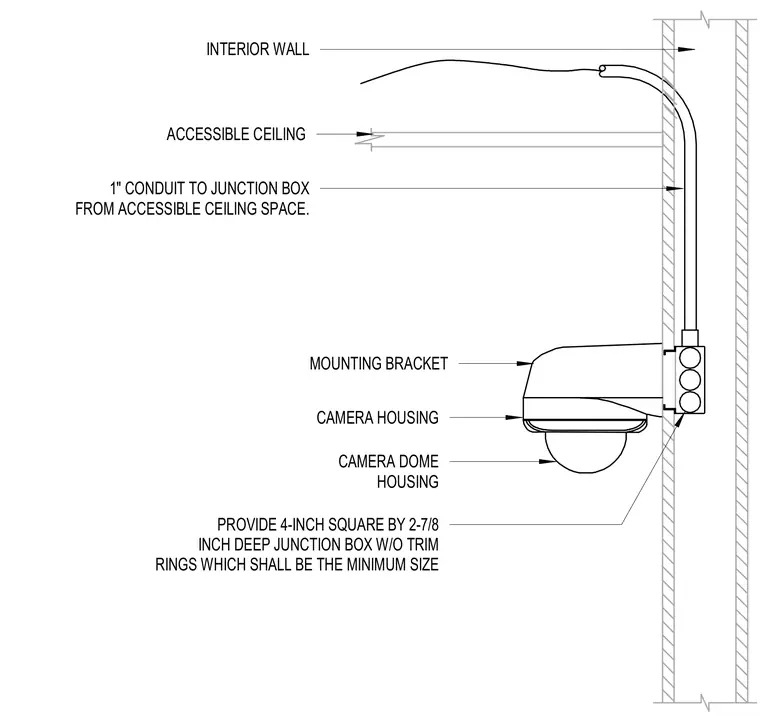

An interior security camera is mounted directly to a finished interior wall with a dedicated mounting bracket and camera dome housing. A one-inch conduit runs upward from the camera housing through the wall cavity to a junction box located within the accessible ceiling space. The installation requires a four-inch square by two-and-seven-eighths-inch deep junction box without trim rings as the minimum required size.
CAMERA HOUSING MOUNTING BRACKET CAMERA DOME HOUSING 1" CONDUIT TO JUNCTION BOX FROM ACCESSIBLE CEILING SPACE. INTERIOR WALL PROVIDE 4-INCH SQUARE BY 2-7/8 INCH DEEP JUNCTION BOX W/O TRIM RINGS WHICH SHALL BE THE MINIMUM SIZE ACCESSIBLE CEILING
