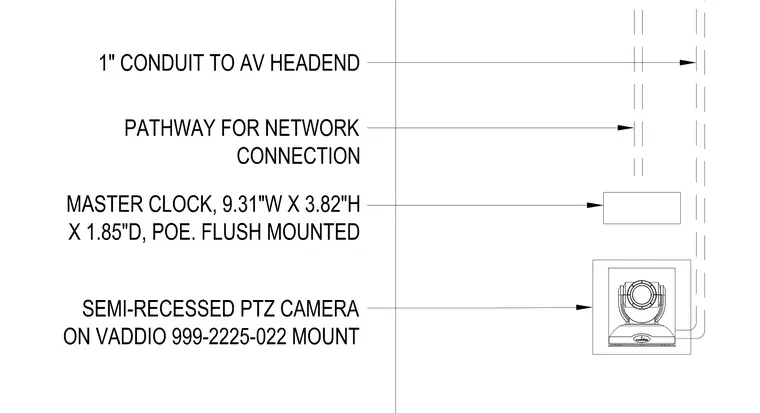

A 1-inch conduit runs to the audiovisual headend alongside a pathway for network connections. A flush-mounted Power over Ethernet master clock measures 9.31 inches wide by 3.82 inches high by 1.85 inches deep. A semi-recessed pan-tilt-zoom camera installs on a Vaddio 999-2225-022 mount.
