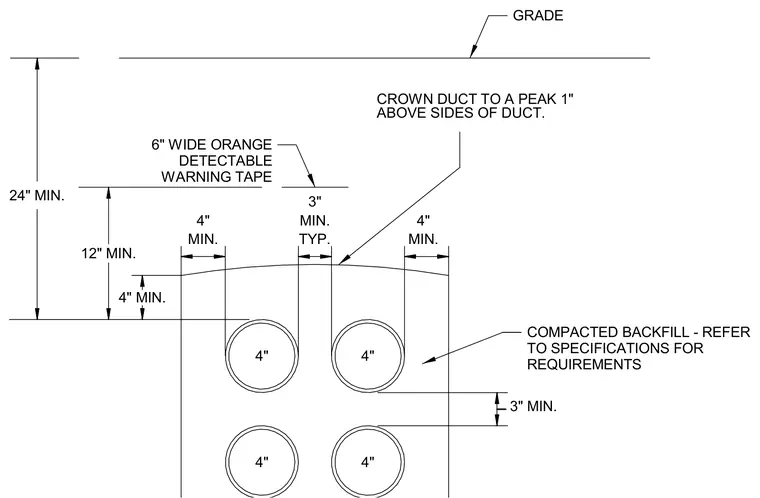

An underground telecommunications conduit duct bank is buried with a minimum depth of twenty-four inches to the top of the concrete encasement below grade. The top surface of the duct bank features a crown crowned to a peak one inch above the sides, with four-inch minimum side clearances and three-inch minimum typical spacing between four-inch conduits. A six-inch wide orange detectable warning tape is placed twelve inches minimum above the top of the duct bank. The surrounding excavation is backfilled with compacted backfill placed per project specifications.
4" 4" MIN. 4" MIN. 4" 12" MIN. GRADE CROWN DUCT TO A PEAK 1" ABOVE SIDES OF DUCT. MIN. 3" TYP. 4" MIN. 24" MIN. COMPACTED BACKFILL - REFER TO SPECIFICATIONS FOR REQUIREMENTS 4" 4" 3" MIN. 6" WIDE ORANGE DETECTABLE WARNING TAPE
