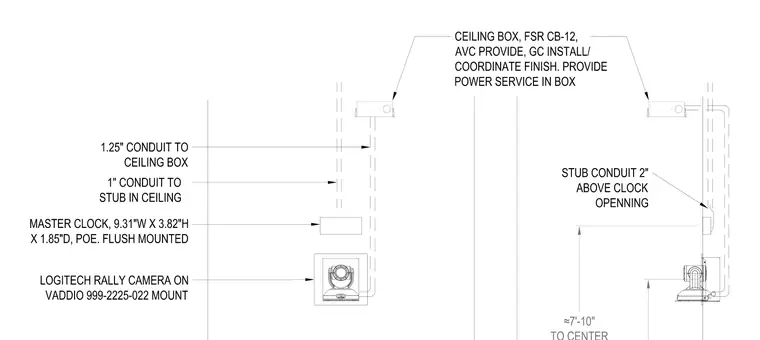

A flush-mounted Master Clock measuring 9.31 inches wide by 3.82 inches high by 1.85 inches deep with Power over Ethernet connects via a 1-inch conduit stubbed into the ceiling. A Logitech Rally Camera on a Vaddio mount sits below the clock, tied to a 1.25-inch conduit running to a ceiling box. An FSR CB-12 ceiling box provides power service and accommodates coordinate finish work. A 2-inch stub conduit is positioned above the clock opening at approximately 7 feet 10 inches to center.
