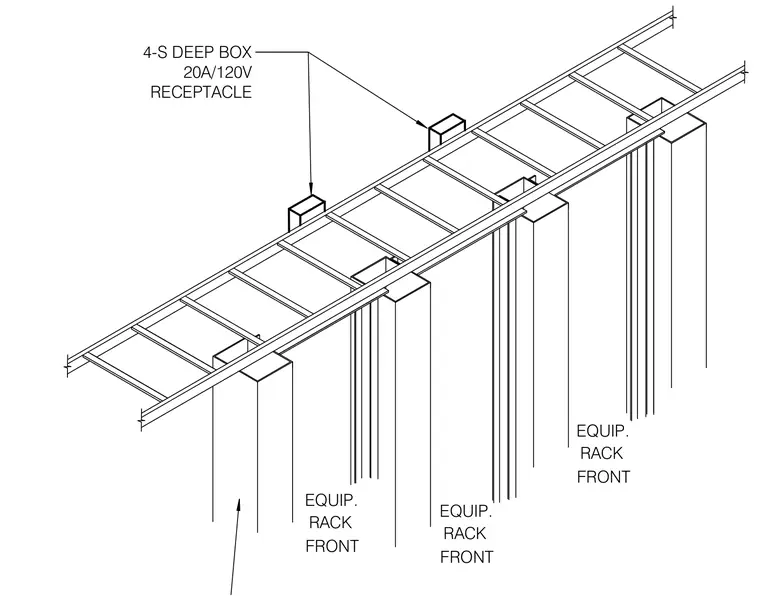

A 20-ampere 120-volt receptacle is housed in a 4-inch square deep electrical box mounted directly to the side of a suspended equipment cable runway. The runway runs above a row of equipment racks, providing power distribution access points along the run.
RACK EQUIP. FRONT 4-S DEEP BOX 20A/120V RECEPTACLE EQUIP. RACK FRONT RACK EQUIP. FRONT
