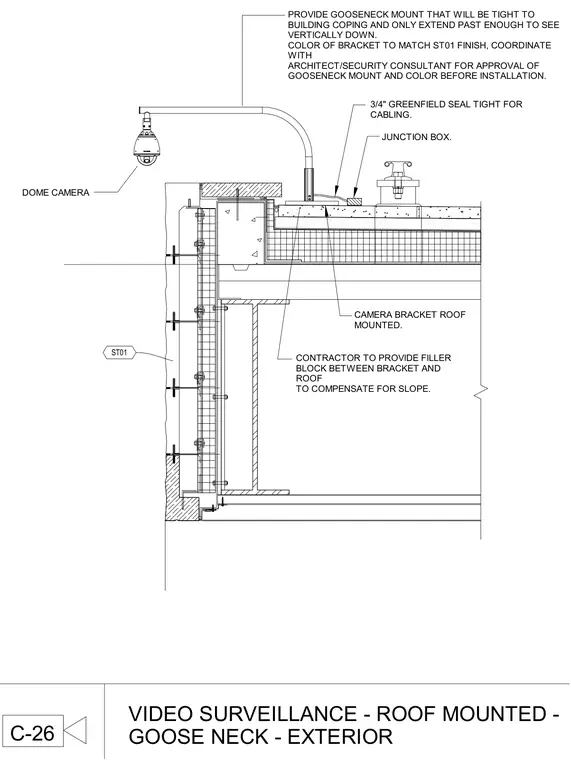

An exterior gooseneck camera bracket is mounted to the roof assembly adjacent to the building coping and positioned to provide a vertical downward view for a dome camera. A filler block is installed between the bracket base and the roof surface to compensate for roof slope. Cabling runs through a three-quarter-inch Greenfield seal-tight conduit connected to a junction box on the roof. The bracket finish matches the ST01 finish and is coordinated with the architect and security consultant.
C-26 DIE 5071 a a a a VIDEO SURVEILLANCE - ROOF MOUNTED - GOOSE NECK - EXTERIOR CAMERA BRACKET ROOF MOUNTED. DOME CAMERA JUNCTION BOX. CONTRACTOR TO PROVIDE FILLER BLOCK BETWEEN BRACKET AND ROOF TO COMPENSATE FOR SLOPE. 3/4" GREENFIELD SEAL TIGHT FOR CABLING. ST01 PROVIDE GOOSENECK MOUNT THAT WILL BE TIGHT TO BUILDING COPING AND ONLY EXTEND PAST ENOUGH TO SEE VERTICALLY DOWN. COLOR OF BRACKET TO MATCH ST01 FINISH, COORDINATE WITH ARCHITECT/SECURITY CONSULTANT FOR APPROVAL OF GOOSENECK MOUNT AND COLOR BEFORE INSTALLATION.
