An underground PVC conduit transitions upward through a concrete slab with a sixty-inch sweep radius. A conduit coupling sits flush with the finish floor surface to receive a threaded plug when the conduit is not extended. Marking whiskers attach to the plug for identification. An underslab vapor barrier and waterproofing membrane run beneath the assembly where applicable.

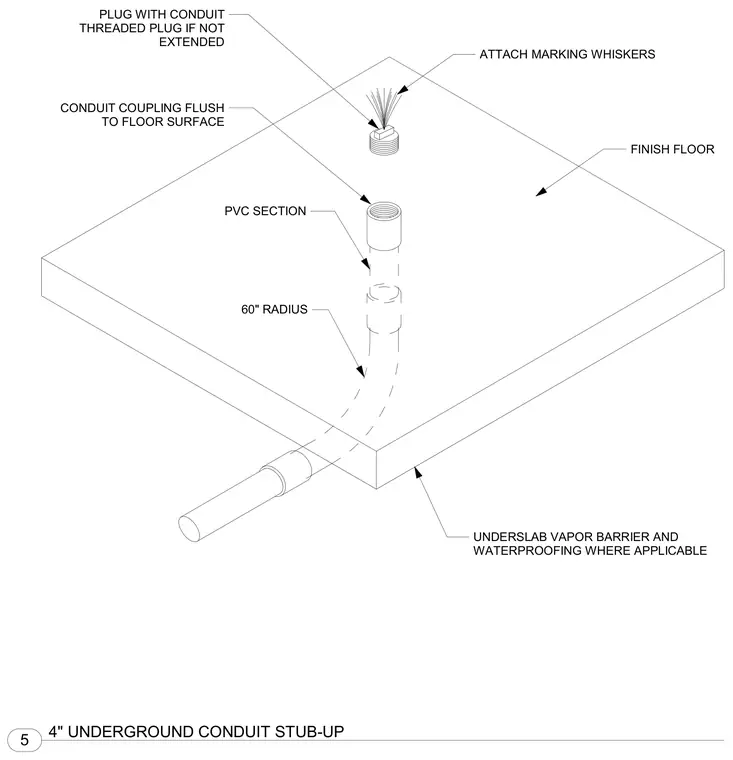

PLUG WITH CONDUIT THREADED PLUG IF NOT EXTENDED CONDUIT COUPLING FLUSH TO FLOOR SURFACE ATTACH MARKING WHISKERS FINISH FLOOR PVC SECTION 60" RADIUS UNDERSLAB VAPOR BARRIER AND WATERPROOFING WHERE APPLICABLE 5 4" UNDERGROUND CONDUIT STUB-UP
