Architectural · T-PPNCT

Temp. Partition Type - T Non-Rated

Materials

Elements

About this detail

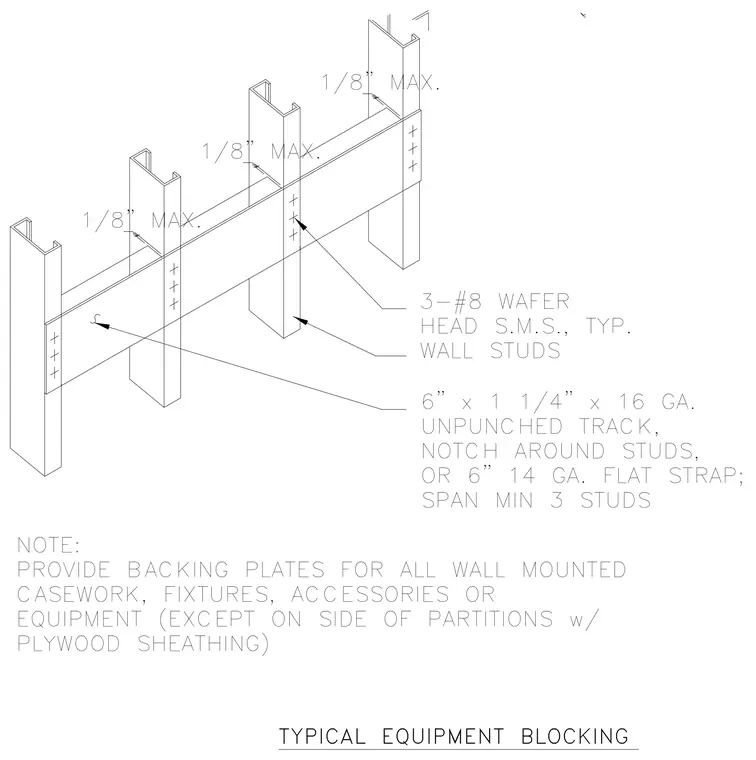

Typical equipment blocking is installed between cold-formed steel wall studs. A six-inch by one-and-one-quarter-inch by sixteen-gauge unpunched track notched around the studs, or alternatively a six-inch fourteen-gauge flat strap, spans a minimum of three studs typical. Each connection to the wall studs is secured with three number eight wafer head sheet metal screws per stud intersection. A maximum one-eighth-inch clearance is detailed at the stud notches. General notes require backing plates for all wall-mounted casework, fixtures, accessories, or equipment, except on the side of partitions featuring plywood sheathing.
