400Hz Aircraft Ground Power Cable Assembly

Materials

Elements

About this detail

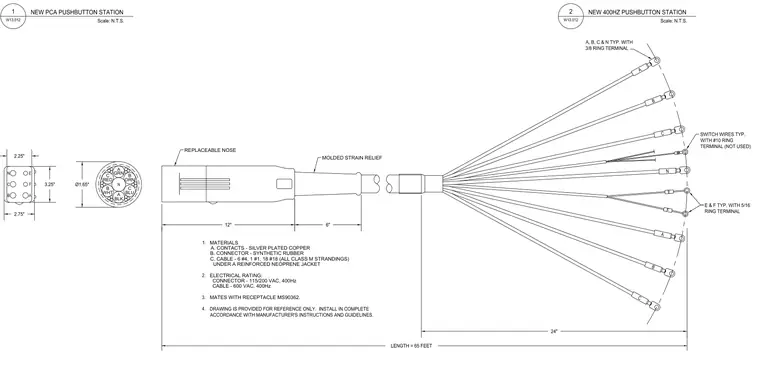

A 400Hz aircraft ground power cable assembly rated at 115/200 VAC for the connector and 600 VAC for the cable. The assembly incorporates a synthetic rubber connector with silver plated copper contacts under a reinforced neoprene jacket, matching receptacle MS90362. A replaceable nose and a molded strain relief protect the 65-foot long cable. Individual conductors include six number 4, one number 1, and eighteen number 18 Class M strandings, fitted with various ring terminals on phases A, B, C, N, E, and F.
