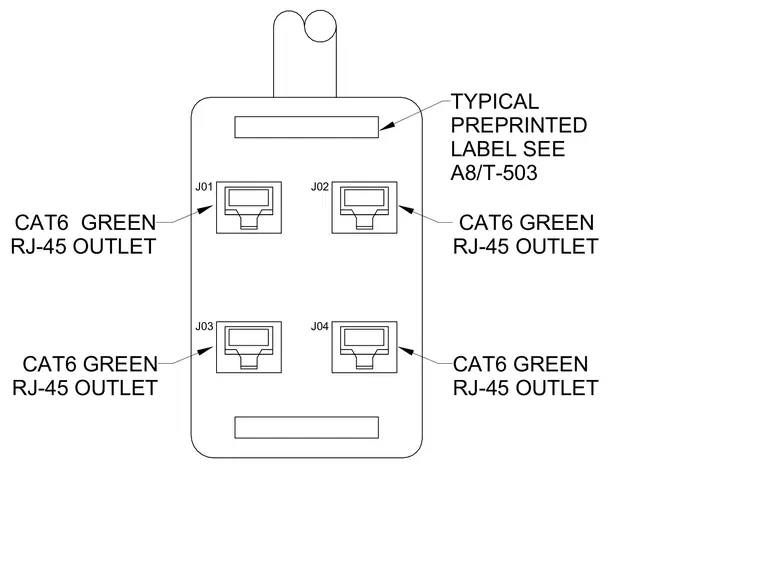

A four-port CAT6 green RJ-45 data outlet faceplate includes four individual modular jacks designated as J01, J02, J03, and J04. Each port is specified for green CAT6 RJ-45 connections. A typical preprinted label slot is positioned at the top referencing sheet A8/T-503.
CAT6 GREEN RJ-45 OUTLET TYPICAL PREPRINTED LABEL SEE A8/T-503 J01 J03 J02 J04 CAT6 GREEN RJ-45 OUTLET CAT6 GREEN RJ-45 OUTLET CAT6 GREEN RJ-45 OUTLET
