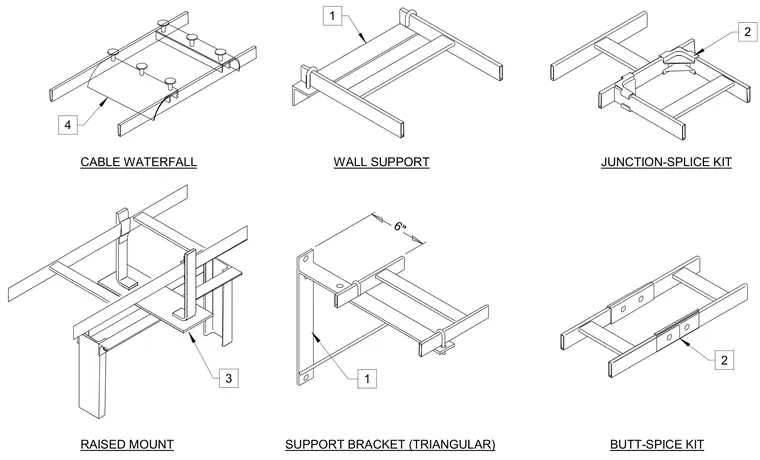

Equipment room wire runway installations feature a six-inch wall support bracket secured with a triangular support, a raised mount with vertical drop attachments, and a cable waterfall for smooth bend radius control. Junction-splice kits and butt-splice kits connect adjacent tray segments. U-bolt fasteners and mechanical splice plates secure the cable runway sections together.
WALL SUPPORT CABLE WATERFALL JUNCTION-SPLICE KIT SUPPORT BRACKET (TRIANGULAR) RAISED MOUNT BUTT-SPICE KIT 6" 1 1 2 3 4 2
