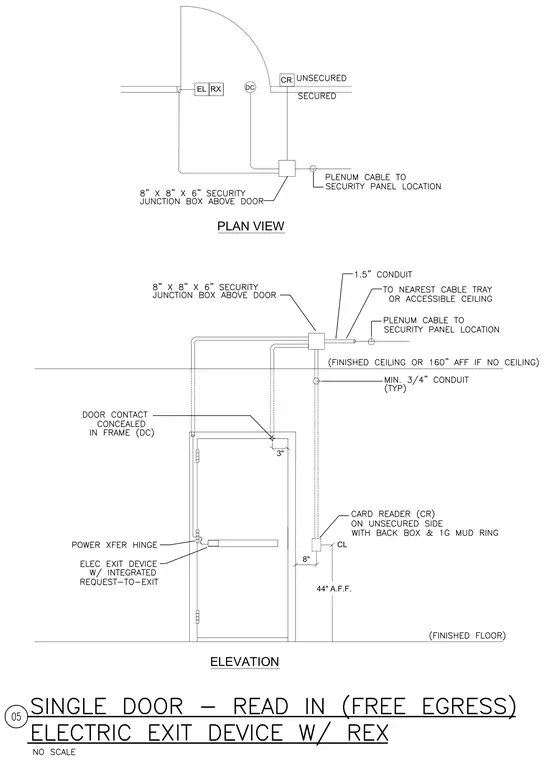

A security hardware installation for a single door features a card reader on the unsecured side mounted with a back box and one-gang mud ring at forty-four inches above the finished floor. An eight-by-eight-by-six-inch security junction box is installed above the door, connecting to a concealed door contact in the frame and a power transfer hinge. An electric exit device with integrated request-to-exit operates at the door. Minimum three-quarter-inch conduits route cabling from the junction box down to the door components and card reader, while a one-and-a-half-inch conduit extends to the nearest cable tray or accessible ceiling, running plenum cable to the security panel location.
3" ELEVATION DC CR PLAN VIEW EL 44" A.F.F. CL 8" RX
