Telecommunications · T-P2SEZ

Finished Ceiling

Elements

About this detail

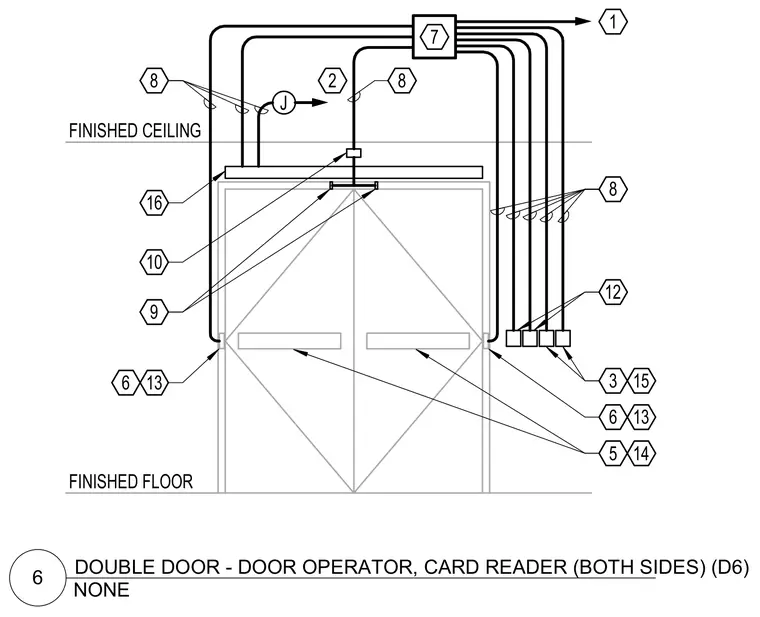

Telecommunications and electrical rough-in and wiring schematic for a double door equipped with a door operator and card readers on both sides. Conduit runs originate from a junction box above the finished ceiling, routing lines to the door operator, door contacts, push plates, and card reader stations mounted adjacent to the door frame. Finished floor and finished ceiling lines establish the vertical reference for equipment mounting heights and conduit drops.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
