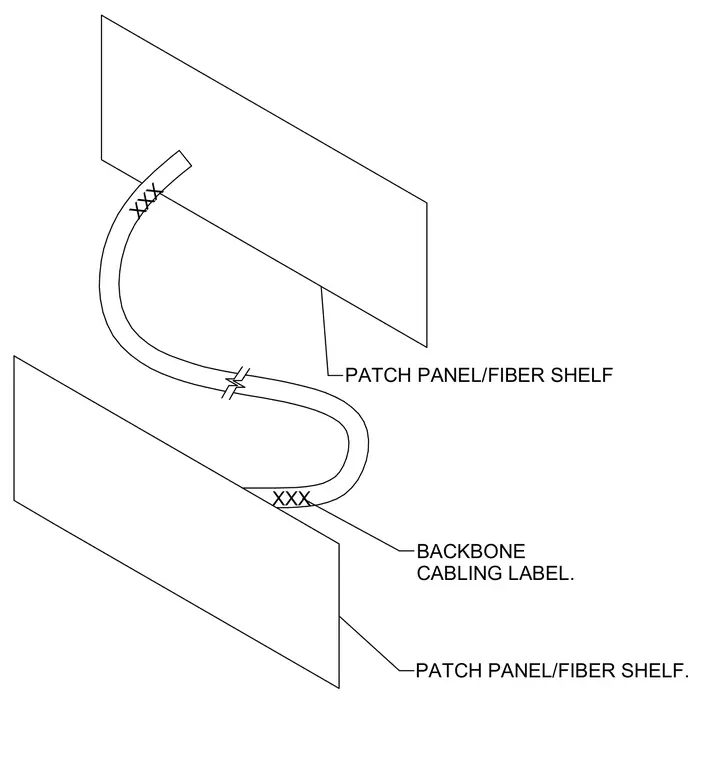

Backbone cabling connects between upper and lower patch panels or fiber shelves. Each termination point features designated backbone cabling labels for circuit identification.
PATCH PANEL/FIBER SHELF XXX BACKBONE CABLING LABEL. PATCH PANEL/FIBER SHELF. XXX
