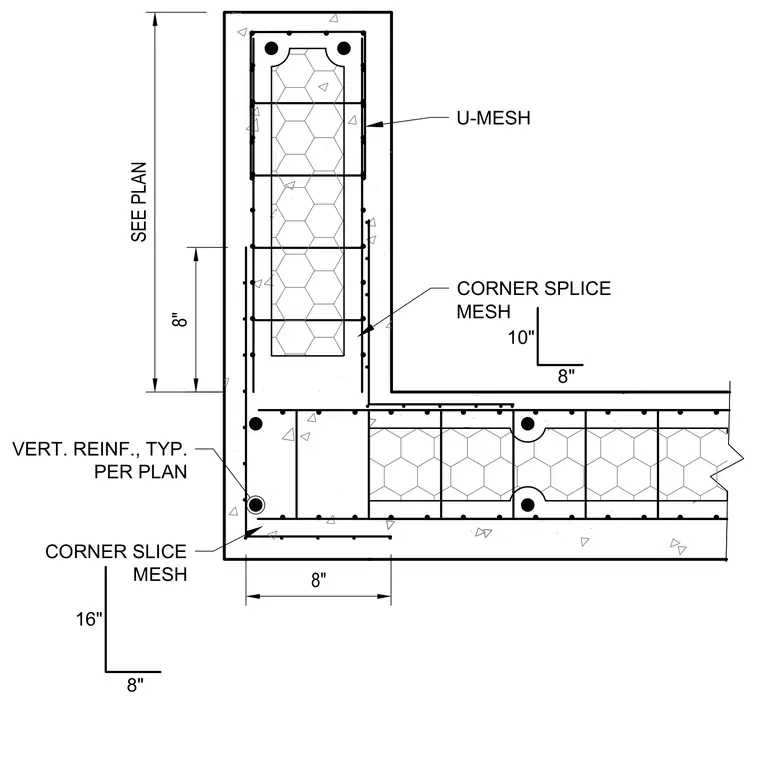

An L-shaped concrete wall corner features vertical reinforcement sized per plan enclosed by continuous U-mesh and corner splice mesh. The corner splice mesh provides continuity around the exterior angle with dimensions of 16 inches by 8 inches and 10 inches by 8 inches as detailed. Additional reinforcing mesh and vertical bars are placed symmetrically throughout the concrete cross section.
CORNER SPLICE MESH VERT. REINF., TYP. PER PLAN U-MESH SEE PLAN 8" 8" 8" 16" CORNER SLICE MESH 10" 8"
