Wall Mounted Device Detail with Conduit Stubbed Above Ceiling

Materials

Elements

About this detail

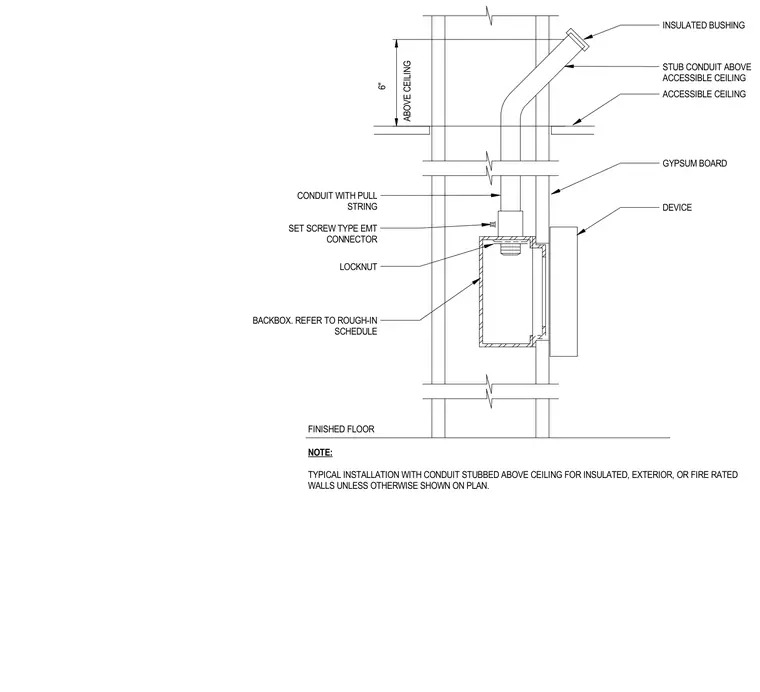

A telecommunications or electrical backbox is recessed within a gypsum board wall assembly with a wall-mounted device attached to the exterior face. An electrical metallic tubing conduit connects to the top of the backbox using a set screw type connector and a locknut. The conduit extends vertically up through the wall cavity, passes through an accessible ceiling line, and stubs out six inches above the ceiling with an insulated bushing and a pull string inside. This typical installation applies to insulated, exterior, or fire-rated walls unless otherwise noted on the plan.
