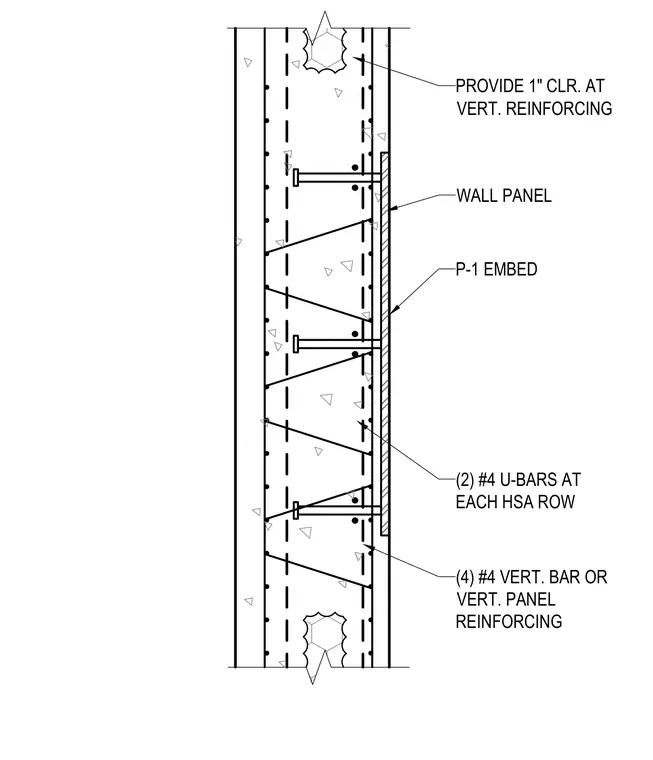

A wall panel embedment assembly utilizes a P-1 embed plate secured with stud anchors into a reinforced concrete wall. The assembly incorporates four number four vertical bars or vertical panel reinforcing alongside two number four U-bars at each headed stud anchor row. A one-inch clear spacing is maintained at the vertical reinforcing.
(4) #4 VERT. BAR OR VERT. PANEL REINFORCING (2) #4 U-BARS AT EACH HSA ROW WALL PANEL P-1 EMBED PROVIDE 1" CLR. AT VERT. REINFORCING
