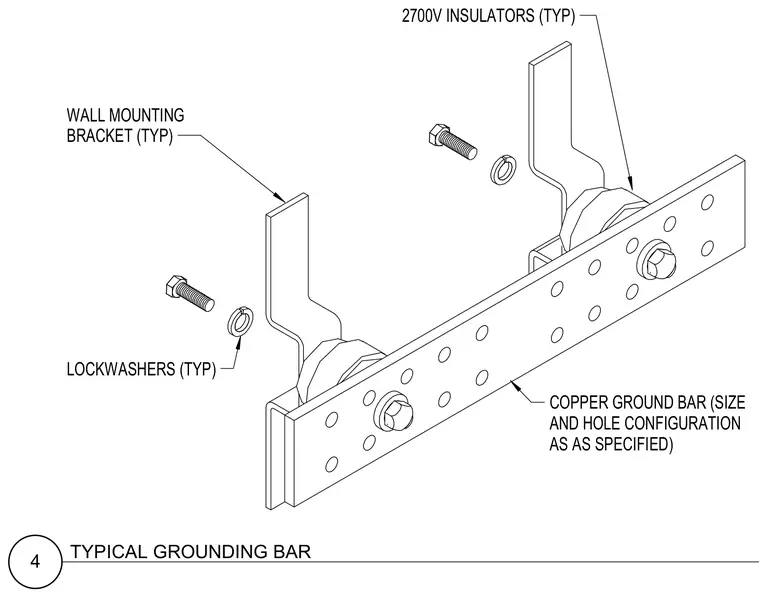

This isometric detail shows a copper ground bar mounted to a wall via two wall mounting brackets. The copper ground bar features pre-drilled holes in sizes and configurations specified per project requirements. The bar is isolated from the brackets using 2700V insulators on each mounting point. Bolts and lockwashers secure the assembly together through the brackets and insulators.
WALL MOUNTING BRACKET (TYP) LOCKWASHERS (TYP) 2700V INSULATORS (TYP) COPPER GROUND BAR (SIZE AND HOLE CONFIGURATION AS AS SPECIFIED) 4 TYPICAL GROUNDING BAR
