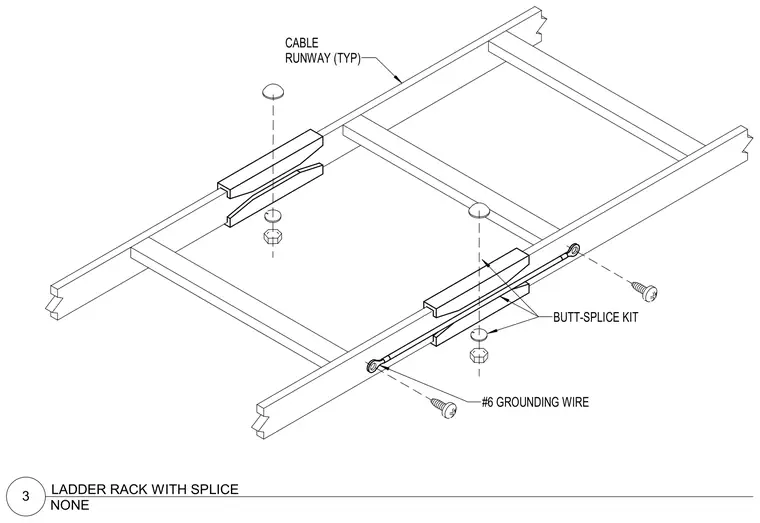

Two segments of a cable runway ladder rack connect end-to-end using a butt-splice kit with bolts, washers, and nuts. A number six grounding wire attaches across the splice joint with grounding screws to maintain electrical continuity between the ladder rack sections.
CABLE RUNWAY (TYP) BUTT-SPLICE KIT #6 GROUNDING WIRE NONE 3 LADDER RACK WITH SPLICE
