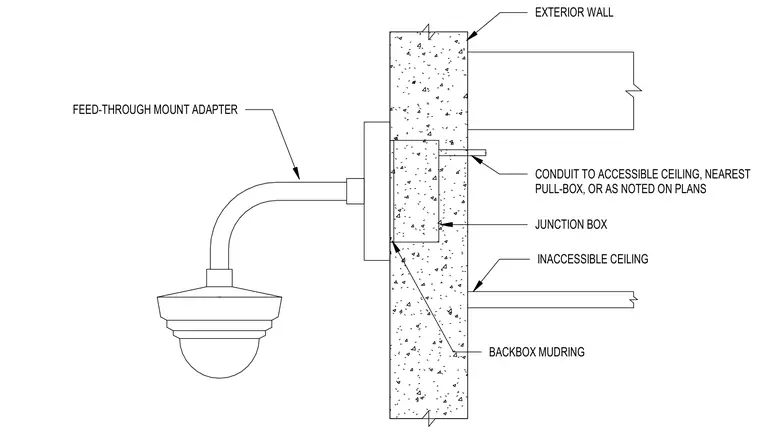

An exterior security camera mounts to an exterior wall using a feed-through mount adapter connected to a recessed junction box with a backbox mudring. A conduit extends from the junction box through the wall assembly to an accessible ceiling, the nearest pull-box, or as otherwise noted on the plans. The assembly coordinates with an inaccessible ceiling meeting the exterior wall.
INACCESSIBLE CEILING FEED-THROUGH MOUNT ADAPTER EXTERIOR WALL JUNCTION BOX CONDUIT TO ACCESSIBLE CEILING, NEAREST PULL-BOX, OR AS NOTED ON PLANS BACKBOX MUDRING
