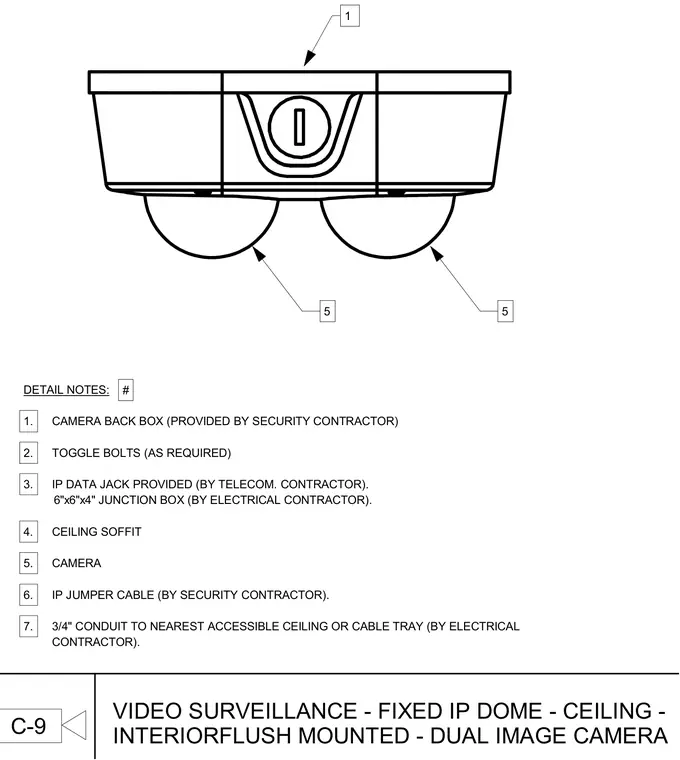

An interior flush-mounted dual image camera is secured to a ceiling soffit using a camera back box provided by the security contractor and toggle bolts as required. A 6"x6"x4" junction box is installed by the electrical contractor alongside an IP data jack provided by the telecommunication contractor. An IP jumper cable connects the camera to the data infrastructure, while a 3/4" conduit runs to the nearest accessible ceiling space or cable tray.
# C-9 DETAIL NOTES: 1. CAMERA BACK BOX (PROVIDED BY SECURITY CONTRACTOR) 2. TOGGLE BOLTS (AS REQUIRED) 3. IP DATA JACK PROVIDED (BY TELECOM. CONTRACTOR). 6"x6"x4" JUNCTION BOX (BY ELECTRICAL CONTRACTOR). 4. CEILING SOFFIT 5. CAMERA 6. IP JUMPER CABLE (BY SECURITY CONTRACTOR). 7. 3/4" CONDUIT TO NEAREST ACCESSIBLE CEILING OR CABLE TRAY (BY ELECTRICAL CONTRACTOR). VIDEO SURVEILLANCE - FIXED IP DOME - CEILING - INTERIORFLUSH MOUNTED - DUAL IMAGE CAMERA 1 5 5
