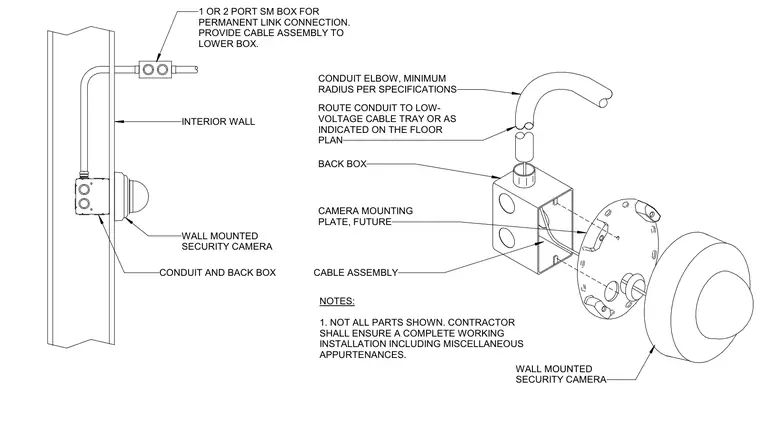

An interior wall supports a surface-mounted security camera connected to a back box and conduit elbow routed to a low-voltage cable tray or floor plan destination. A one or two-port surface-mount box provides a permanent link connection with a cable assembly extending to the lower box. A camera mounting plate interfaces between the back box and the wall-mounted security camera.
CONDUIT AND BACK BOX INTERIOR WALL WALL MOUNTED SECURITY CAMERA CONDUIT ELBOW, MINIMUM RADIUS PER SPECIFICATIONS ROUTE CONDUIT TO LOW- VOLTAGE CABLE TRAY OR AS INDICATED ON THE FLOOR PLAN NOTES: 1. NOT ALL PARTS SHOWN. CONTRACTOR SHALL ENSURE A COMPLETE WORKING INSTALLATION INCLUDING MISCELLANEOUS APPURTENANCES. CABLE ASSEMBLY BACK BOX CAMERA MOUNTING PLATE, FUTURE WALL MOUNTED SECURITY CAMERA 1 OR 2 PORT SM BOX FOR PERMANENT LINK CONNECTION. PROVIDE CABLE ASSEMBLY TO LOWER BOX.
