Precast concrete wall panels meet at a corner using embedded 6x10x3/8-inch plates and L4x4x3/8-inch angles welded with quarter-inch fillet welds. Two number 4 by 30-inch A706 reinforcing bars spaced eight inches apart are anchored within the panel. Expanded polystyrene is removed to provide a one-inch clearance around all embed reinforcement. The offset from the face of the wall is determined based on wall thickness and required vertical reinforcing.

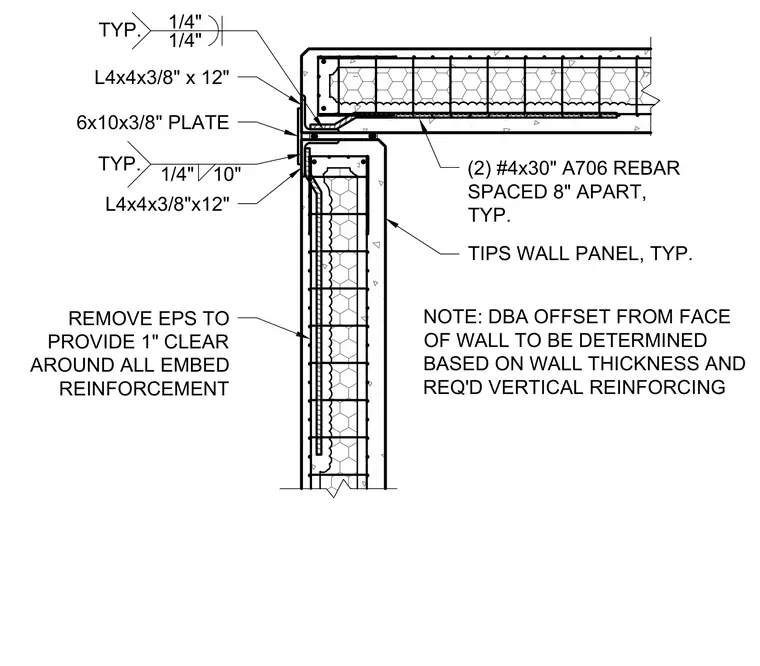

(2) #4x30" A706 REBAR SPACED 8" APART, TYP. L4x4x3/8" x 12" REMOVE EPS TO PROVIDE 1" CLEAR AROUND ALL EMBED REINFORCEMENT 6x10x3/8" PLATE L4x4x3/8"x12" 1/4" 1/4" TIPS WALL PANEL, TYP. TYP. 1/4" 10" TYP. NOTE: DBA OFFSET FROM FACE OF WALL TO BE DETERMINED BASED ON WALL THICKNESS AND REQ'D VERTICAL REINFORCING
