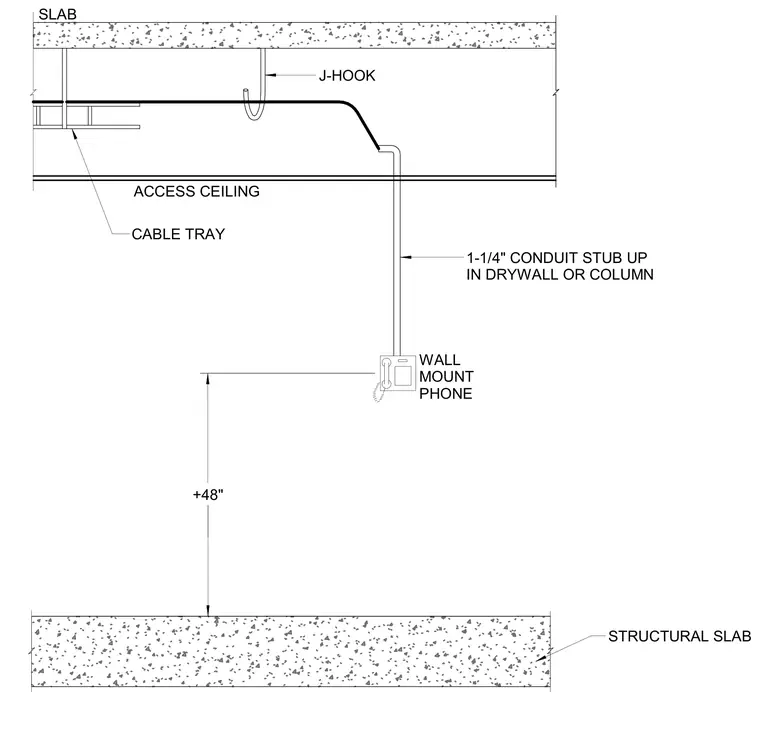

A wall-mounted telephone is positioned at forty-eight inches above the structural slab. A one-and-a-quarter-inch conduit extends upward from the phone through the drywall or column into the plenum space. Cabling routes from the conduit stub up through J-hooks to an overhead cable tray suspended below the structural slab and above the access ceiling.
WALL MOUNT PHONE 1-1/4" CONDUIT STUB UP IN DRYWALL OR COLUMN STRUCTURAL SLAB +48" ACCESS CEILING SLAB CABLE TRAY J-HOOK
