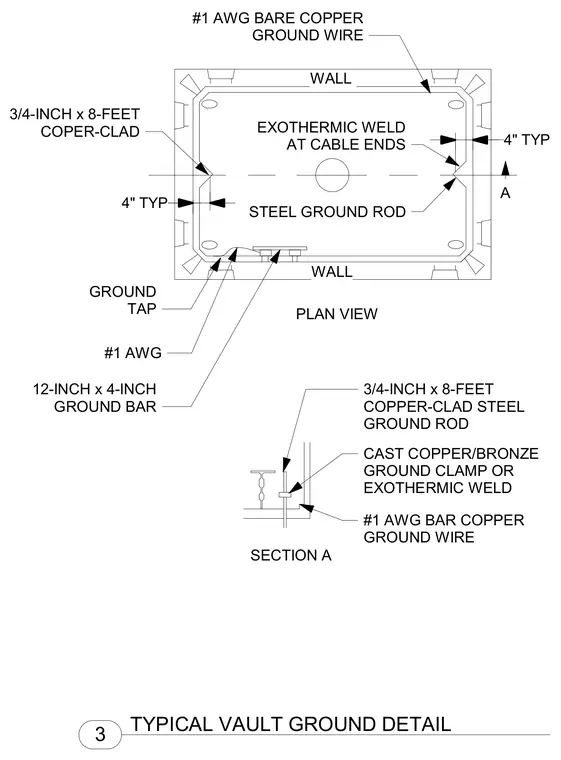

A number one American Wire Gauge bare copper ground wire loops along the interior walls of the vault, connected at cable ends with an exothermic weld. Three-quarter-inch by eight-feet copper-clad steel ground rods are driven at the corners, utilizing cast copper or bronze ground clamps or exothermic welds. A twelve-inch by four-inch ground bar mounts to the wall with a ground tap linked to the copper wire. Section A details the vertical alignment of the ground rod and wire relative to the vault structure.
#1 AWG BARE COPPER GROUND WIRE 3/4-INCH x 8-FEET COPER-CLAD STEEL GROUND ROD EXOTHERMIC WELD AT CABLE ENDS WALL WALL GROUND TAP #1 AWG 12-INCH x 4-INCH GROUND BAR 4" TYP A PLAN VIEW 3/4-INCH x 8-FEET COPPER-CLAD STEEL GROUND ROD CAST COPPER/BRONZE GROUND CLAMP OR EXOTHERMIC WELD #1 AWG BAR COPPER GROUND WIRE SECTION A 4" TYP 3 TYPICAL VAULT GROUND DETAIL
