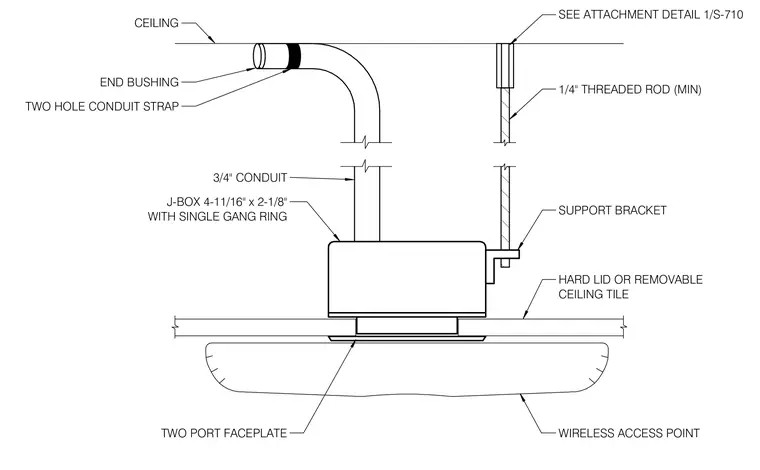

A wireless access point is mounted through a hard lid or removable ceiling tile using a two-port faceplate. The unit connects to a four-eleven-sixteenths by two-and-one-eighth-inch junction box fitted with a single-gang ring. A three-quarter-inch conduit feeds into the junction box, secured with a two-hole conduit strap and an end bushing at the ceiling penetration. The assembly is supported by a minimum quarter-inch threaded rod attached to a support bracket, with the ceiling attachment detailed per drawing one on sheet S-seven-ten.
1/4" THREADED ROD (MIN) SUPPORT BRACKET HARD LID OR REMOVABLE CEILING TILE WIRELESS ACCESS POINT TWO PORT FACEPLATE J-BOX 4-11/16" x 2-1/8" WITH SINGLE GANG RING 3/4" CONDUIT TWO HOLE CONDUIT STRAP END BUSHING CEILING SEE ATTACHMENT DETAIL 1/S-710
