A two-post network equipment rack is secured to a concrete slab on metal deck utilizing normal weight or sand lightweight concrete with a three thousand PSI minimum strength. The base is anchored with four five-eighths inch diameter Hilti KB-TZ expansion anchors requiring a three and one-eighth inch minimum embedment. Each mounting angle is fastened with two three-eighths inch diameter ASTM A307 bolts tightened to twenty foot-pounds of torque. Minimum edge distance and spacing from any opening or other equipment bolt is six inches typical. The concrete slab has a six-inch minimum thickness.

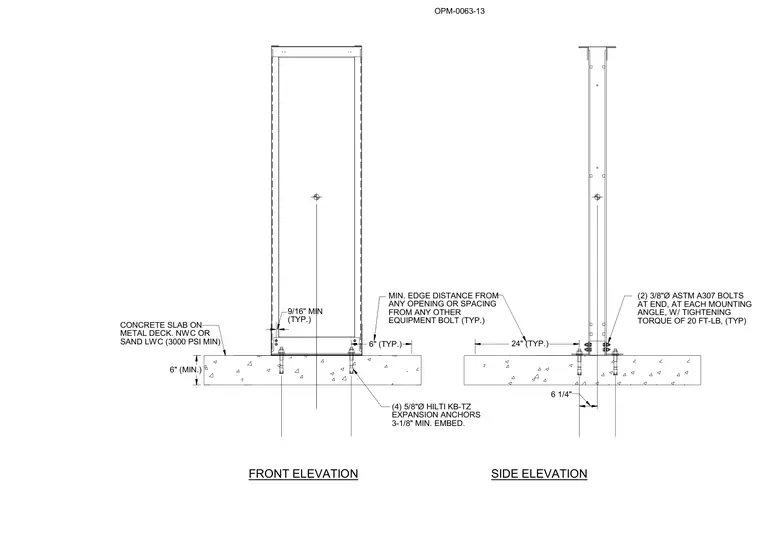

(2) 3/8"Ø ASTM A307 BOLTS AT END, AT EACH MOUNTING ANGLE, W/ TIGHTENING (4) 5/8"Ø HILTI KB-TZ EXPANSION ANCHORS 3-1/8" MIN. EMBED. 6" (MIN.) FRONT ELEVATION SIDE ELEVATION CONCRETE SLAB ON METAL DECK. NWC OR 6" (TYP.) 24" (TYP.) MIN. EDGE DISTANCE FROM ANY OPENING OR SPACING FROM ANY OTHER EQUIPMENT BOLT (TYP.) TORQUE OF 20 FT-LB, (TYP) 6 1/4" SAND LWC (3000 PSI MIN) 9/16" MIN (TYP.) OPM-0063-13
