Conduit for 120V Power Circuit

Elements

About this detail

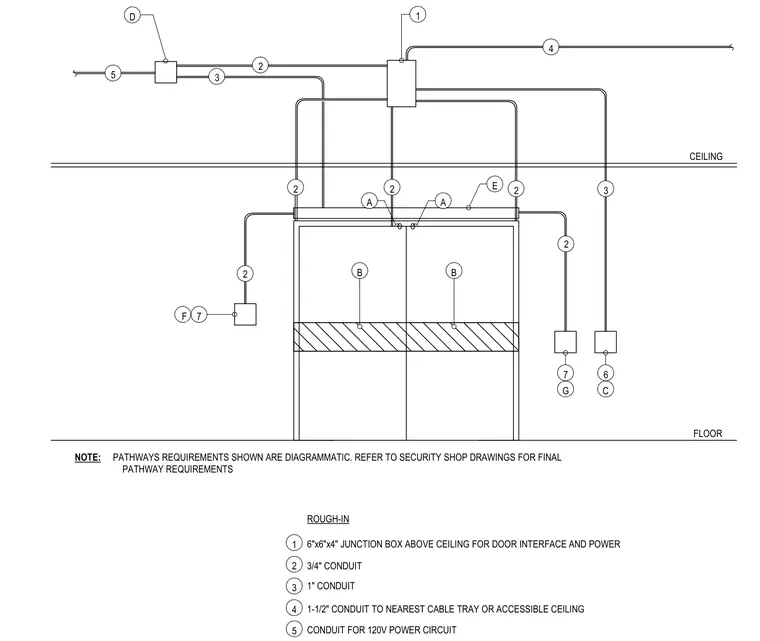

A six-inch by six-inch by four-inch junction box is mounted above the ceiling for door interface and power connections, serving as the central distribution point for surrounding raceways. Three-quarter-inch, one-inch, and one-and-a-half-inch conduits route power and signal circuits to peripheral wall devices, card readers, and the nearest accessible cable tray. Pathways requirements shown are diagrammatic, and users must refer to security shop drawings for final routing specifications.
