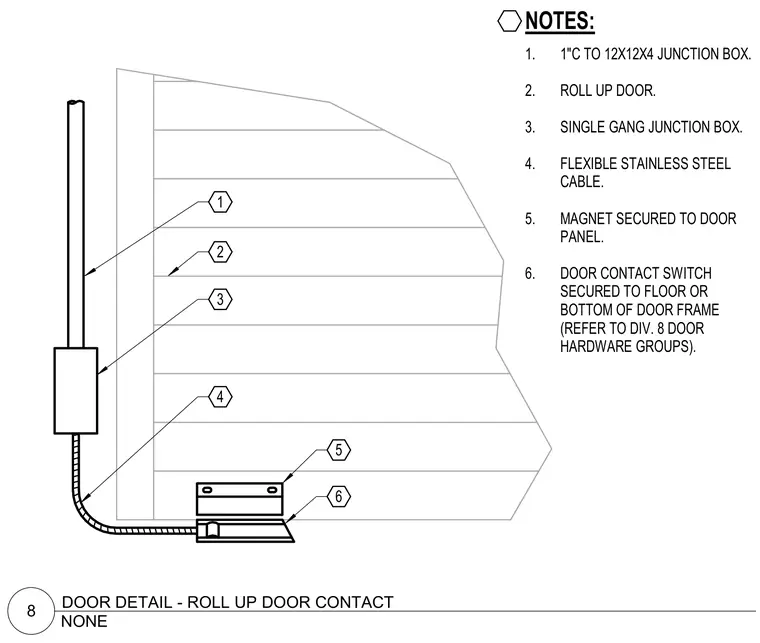

A roll-up door contact switch is secured to the floor or the bottom of the door frame with a corresponding magnet attached to the door panel. A flexible stainless steel cable routes wiring from the switch to a single gang junction box. A conduit runs from the junction box to a larger 12x12x4 junction box above. Door hardware groups per Division 8 govern the specific contact switch selection and installation requirements.
1. 1"C TO 12X12X4 JUNCTION BOX. 2. ROLL UP DOOR. 3. SINGLE GANG JUNCTION BOX. 4. FLEXIBLE STAINLESS STEEL CABLE. 5. MAGNET SECURED TO DOOR PANEL. 6. DOOR CONTACT SWITCH SECURED TO FLOOR OR BOTTOM OF DOOR FRAME (REFER TO DIV. 8 DOOR HARDWARE GROUPS). NOTES: 1 2 3 4 5 6 NONE 8 DOOR DETAIL - ROLL UP DOOR CONTACT
