Surface Mounted IP or Analog Speaker Horn

Materials

Elements

About this detail

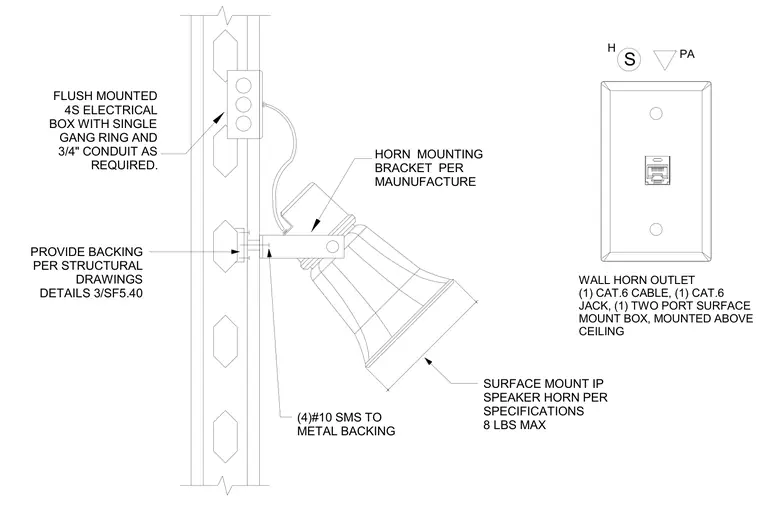

A surface-mounted IP or analog speaker horn weighing a maximum of 8 pounds is attached to a horn mounting bracket per the manufacturer's specifications. The bracket is secured to metal backing using four number 10 sheet metal screws. The metal backing is provided per structural drawings details 3/SF5.40. A flush-mounted 4S electrical box with a single gang ring and a three-quarter-inch conduit is installed as required. The wall horn outlet includes one Category 6 cable, one Category 6 jack, and a two-port surface mount box mounted above the ceiling.
