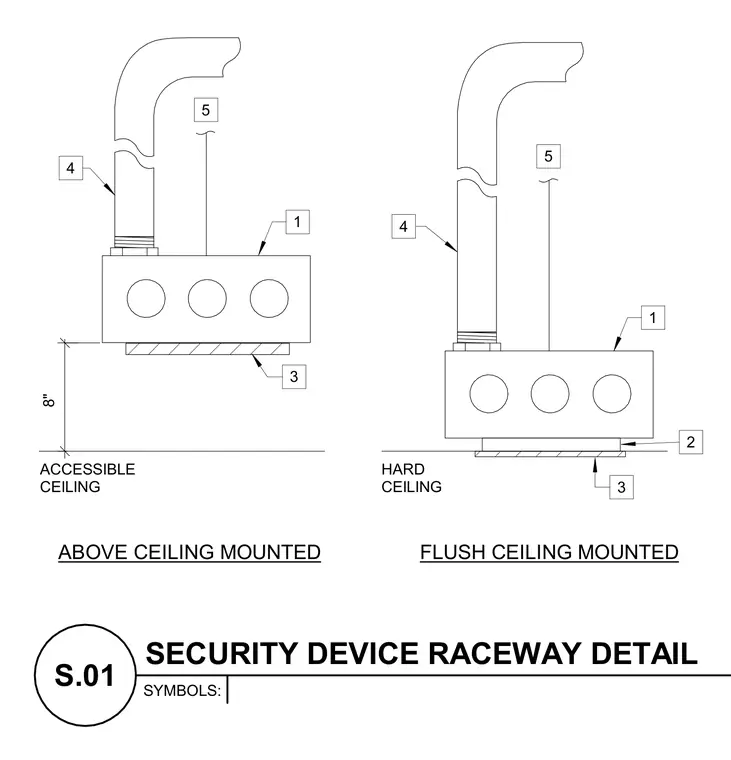

Security device raceway mounting details show both above-ceiling and flush-mounted configurations. The raceway box connects to a vertical conduit extending upward through the ceiling assembly. Mounting arrangements distinguish between accessible ceilings with an eight-inch offset and flush hard ceilings.
SYMBOLS: S.01 SECURITY DEVICE RACEWAY DETAIL 4 1 2 HARD CEILING 3 5 4 1 ACCESSIBLE CEILING 3 5 8" ABOVE CEILING MOUNTED FLUSH CEILING MOUNTED
