A standard 7-foot high by 19-inch wide by 3-inch equipment rack connects to an overhead cable runway using a rack-to-runway mounting plate part number 10595-718 in black. The assembly secures with brackets and assembly hardware part number 10506-706 in black. The mounting plate attaches directly to the top of the rack while brackets tie into the runway framework.

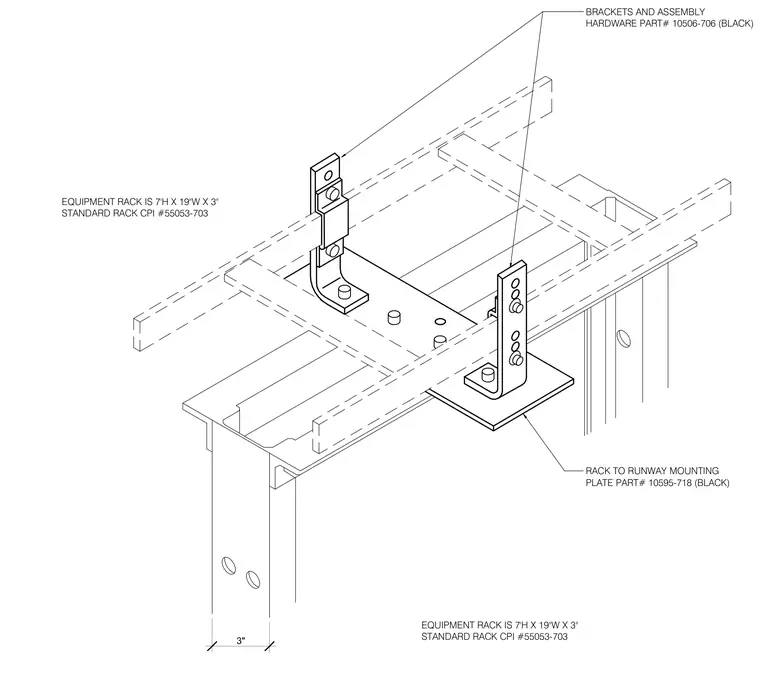

EQUIPMENT RACK IS 7'H X 19"W X 3" STANDARD RACK CPI #55053-703 EQUIPMENT RACK IS 7'H X 19"W X 3" STANDARD RACK CPI #55053-703 RACK TO RUNWAY MOUNTING PLATE PART# 10595-718 (BLACK) BRACKETS AND ASSEMBLY HARDWARE PART# 10506-706 (BLACK) 3"
