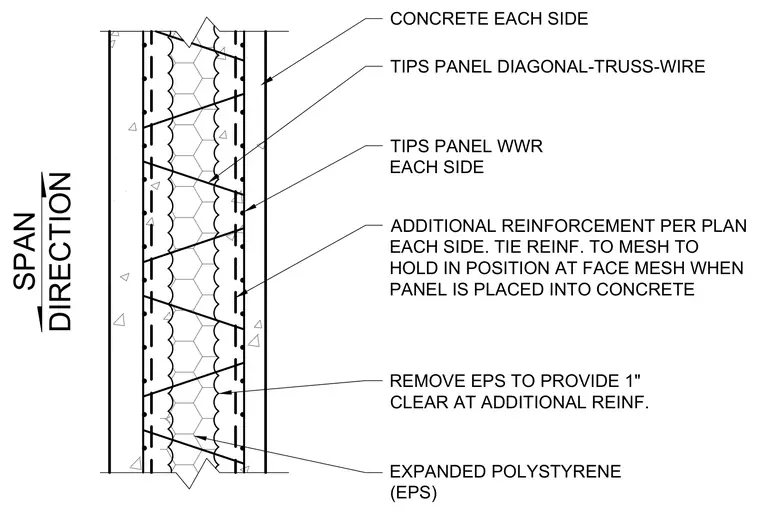

An insulated concrete sandwich panel features concrete layers cast on each side of an expanded polystyrene core. Welded wire reinforcement is embedded within the concrete faces and tied to diagonal truss wires spanning through the insulation. Additional reinforcement is placed per plan on each side and tied to the face mesh to maintain positioning during concrete placement. Expanded polystyrene is removed locally to provide a one-inch clearance at the additional reinforcement.
SPAN DIRECTION TIPS PANEL WWR EACH SIDE CONCRETE EACH SIDE EXPANDED POLYSTYRENE (EPS) TIPS PANEL DIAGONAL-TRUSS-WIRE REMOVE EPS TO PROVIDE 1" CLEAR AT ADDITIONAL REINF. ADDITIONAL REINFORCEMENT PER PLAN EACH SIDE. TIE REINF. TO MESH TO HOLD IN POSITION AT FACE MESH WHEN PANEL IS PLACED INTO CONCRETE
