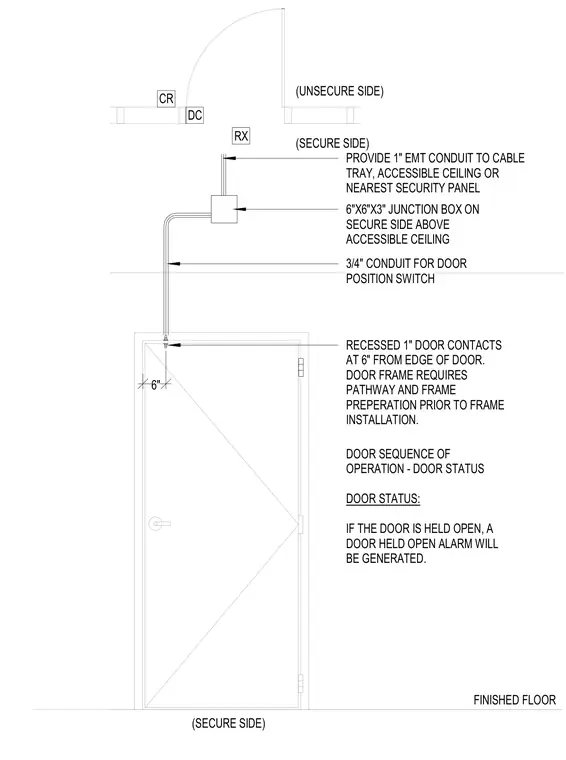

Security Door Contact and Conduit Rough-In Detail

Elements

About this detail

Recessed one-inch door contacts are positioned six inches from the edge of the door on the secure side. A three-quarter-inch conduit runs from the door switch to a six-by-six-by-three-inch junction box located on the secure side above the accessible ceiling. From the junction box, a one-inch electrical metallic tubing conduit routes to the cable tray, accessible ceiling, or nearest security panel. The door frame requires pathway and frame preparation prior to frame installation. A door status sequence of operation generates an alarm if the door is held open.
