Telecommunications · T-JYDVG

1" Conduit to Nearest Cable Tray

Elements

About this detail

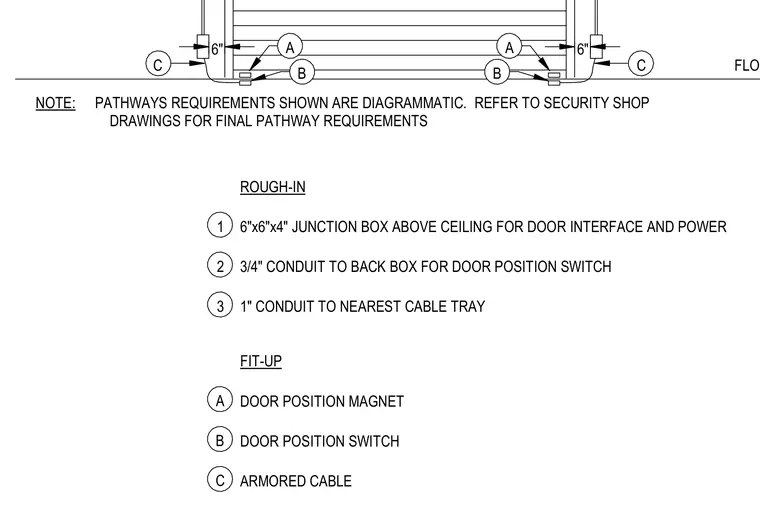

A six-inch by six-inch by four-inch junction box is mounted above the ceiling for door interface and power. A three-quarter-inch conduit runs to the back box for the door position switch, while a one-inch conduit connects to the nearest cable tray. The fit-up includes a door position magnet, a door position switch, and armored cable routed near the floor. Pathways requirements shown are diagrammatic, and security shop drawings must be referenced for final pathway requirements.
